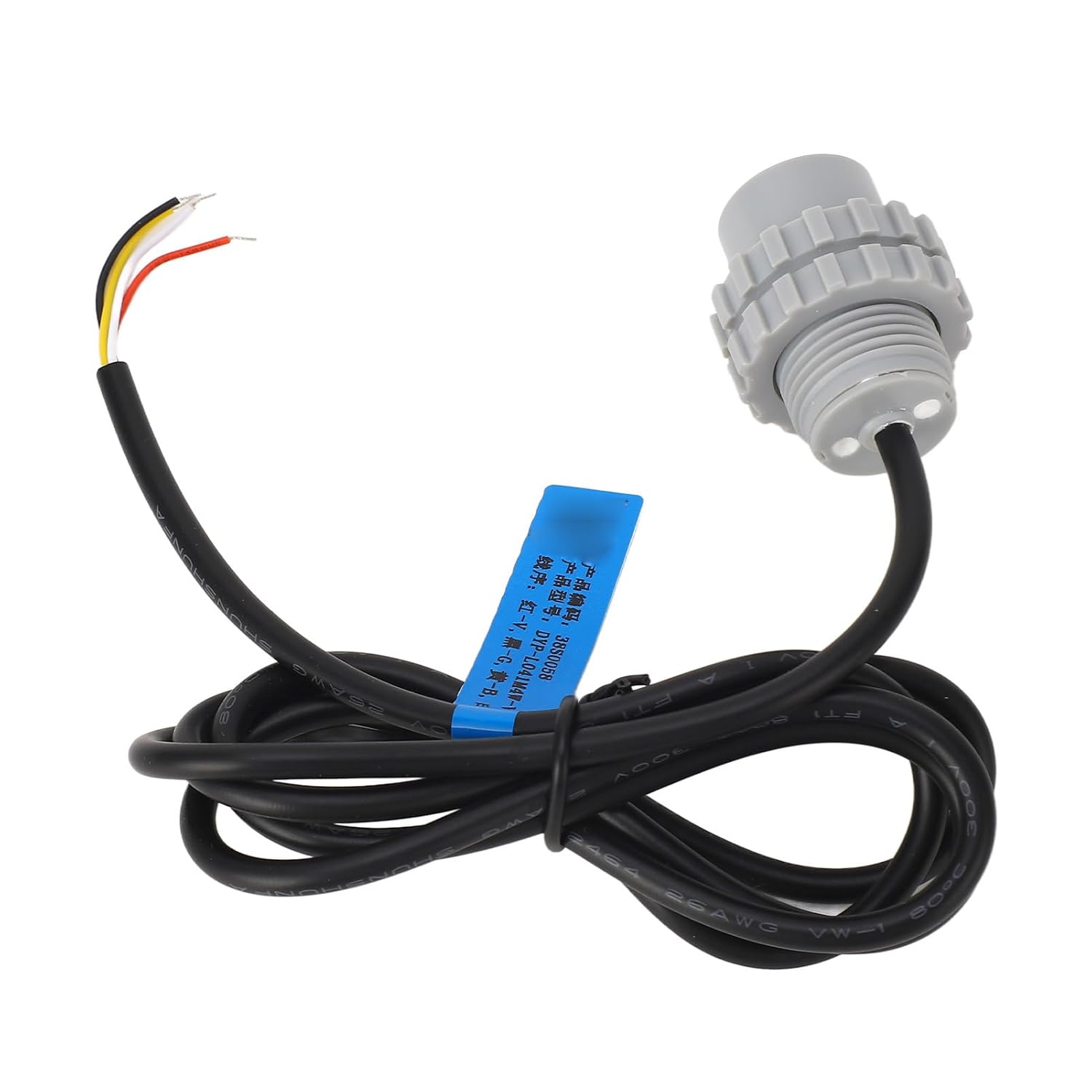

Superior Underwater Distance Sensor Perfect for Swimming Pools Detecting Up to 6 Meters Requires DC5 24V Ultrasonic (UART Controlled ≤7mA 14ms)

1. IP68 WATERPROOF: Ultrasonic obstacle avoidance sensor designed for underwater application, with IP68 waterproof grade, convenient and practical.2. SENSOR ADVANTAGE: The ultrasonic underwater ranging sensor has the advantages of compact size, small blind spot (minimum 2cm), and high accuracy.3. OBSTACLE AVOIDANCE: This sensor can replace traditional camera, and meet the requirements for underwater obstacle avoidance at normal sailing speeds.4. MULTIPLE FUNCTIONS: Supports module address, angle, and baud rate modification, with electrostatic protection design, compliant with IEC 61000‑4‑2 standards.5. APPLICABLE SCENE: The ultrasonic distance measuring sensor has a range of 6 meters for flat objects, suitable for underwater robots, and swimming pools, etc.Spec:Item Type: Underwater Distance SensorTemperature Compensation: YesWaterproof Grade: IP68Working Temperature: -15℃-55℃Baud Rate: 115200bpsFunction: Supports module address, angle, baud rate modification, electrostatic protection design, and complies with IEC 61000-4-2 standards.Working Voltage: DC5-24VStandby Current: ≤1mABlind Spot Distance: Approx. 5cm / 2inFlat Object Range: Approx. 6m / 19.7ftPower On Working Time: ≤1sWork Cycle: ControlledDistance measurement accuracyWithin 2 Meter: ±(0.5+Sx0.5%)Beyond 2 Meter: ±(1+Sx1%)Angle: 8-16°How to Use:Install and use directly.packing list:1 x Underwater Distance SensorNote:1. Response time measured at 9600 baud rate;2. The module is static in the underwater 30CM, the water temperature is 25℃, the water is calm, no current test data, S represents the current distance;3. The module is static at 30CM underwater, the water temperature is 25℃, the water is calm, and the data is obtained by using PVC pipe at 0.7 meters.

• SENSOR ADVANTAGE: The ultrasonic underwater ranging sensor has the advantages of compact size, small blind spot (minimum 2cm), and high accuracy.
• OBSTACLE AVOIDANCE: This sensor can replace traditional camera, and meet the requirements for underwater obstacle avoidance at normal sailing speeds.
• IP68 WATERPROOF: Ultrasonic obstacle avoidance sensor designed for underwater application, with IP68 waterproof grade, convenient and practical.
• Selling Summary: Widely used, selling description From underwater exploration, to land measurement, to navigation, no matter in which field, our ultrasonic ranging and underwater distance can exert its and meet the needs of Your various needs.
• MULTIPLE FUNCTIONS: Supports module address, angle, and baud rate modification, with electrostatic protection design, compliant with IEC 61000‑4‑2 standards.
