MAPLE ACE UCF206-19 Square Flange Bearing 1-3/16" Bore, 4-Bolt Self-Aligning, Solid Base, Heavy Duty (Qty 4)

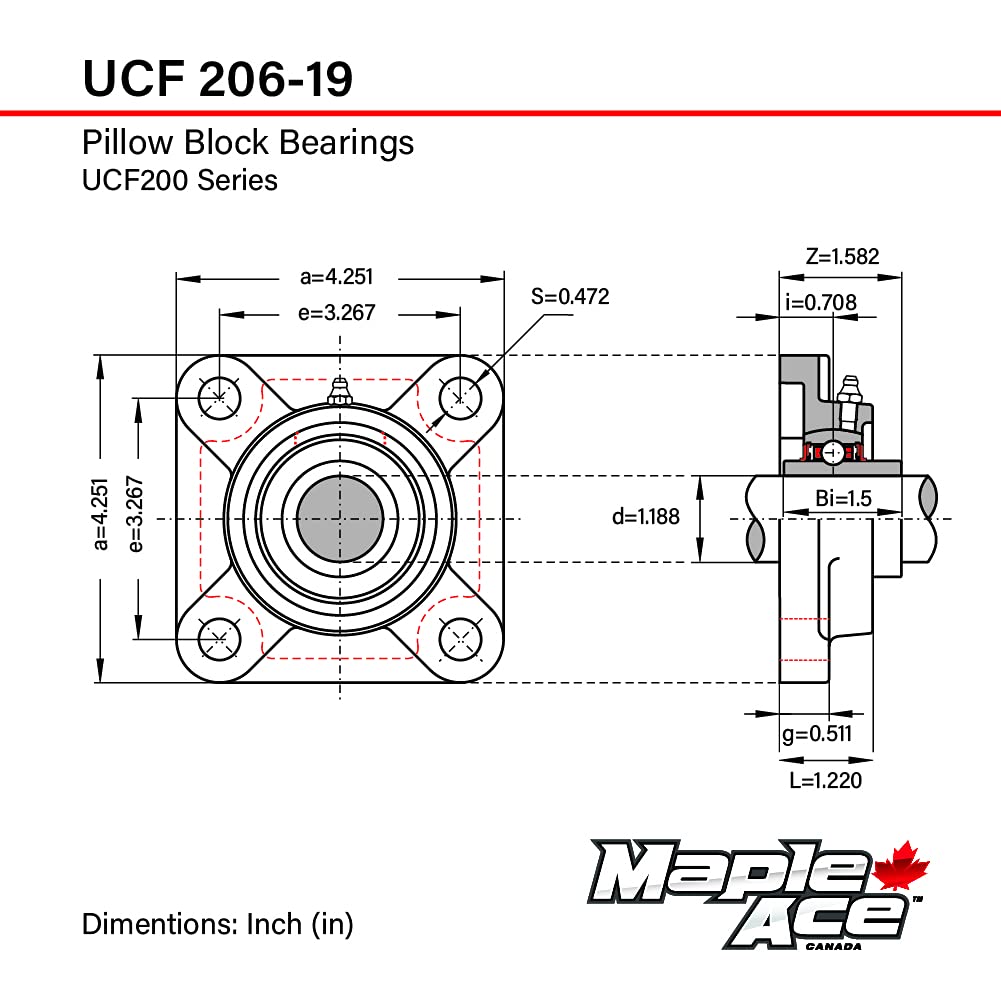

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCF206-19, Series UCF200, Bearing Number UC206-19, Housing Number F206, Number of Bolts 4, Bolt Size (S) 3/8 in, Bearing Bore Diameter (d) Metric 30.163 mm, Bearing Bore Diameter (d) Inch 1-3/16 in, Bearing Width Inner Ring (Bi) Matric 38.10 mm, Bearing Width Inner Ring (Bi) Inch 1.500 in, Bolt Hole Center to Center (e) Matric 83 mm, Bolt Hole Center to Center (e) Inch 3.267 in, Flange width (a) Matric 108 mm, Flange width (a) Inch 4.251 in, Overall Height (Z) Matric 40.2 mm, Overall Height (Z) Inch 1.582 in, Dynamic Load Rating Cr 19500 N, Static Load Rating Cor 11200 N, Limiting Speed 6300 r/min, Clearance Normal, Bearing Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 1.00 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
