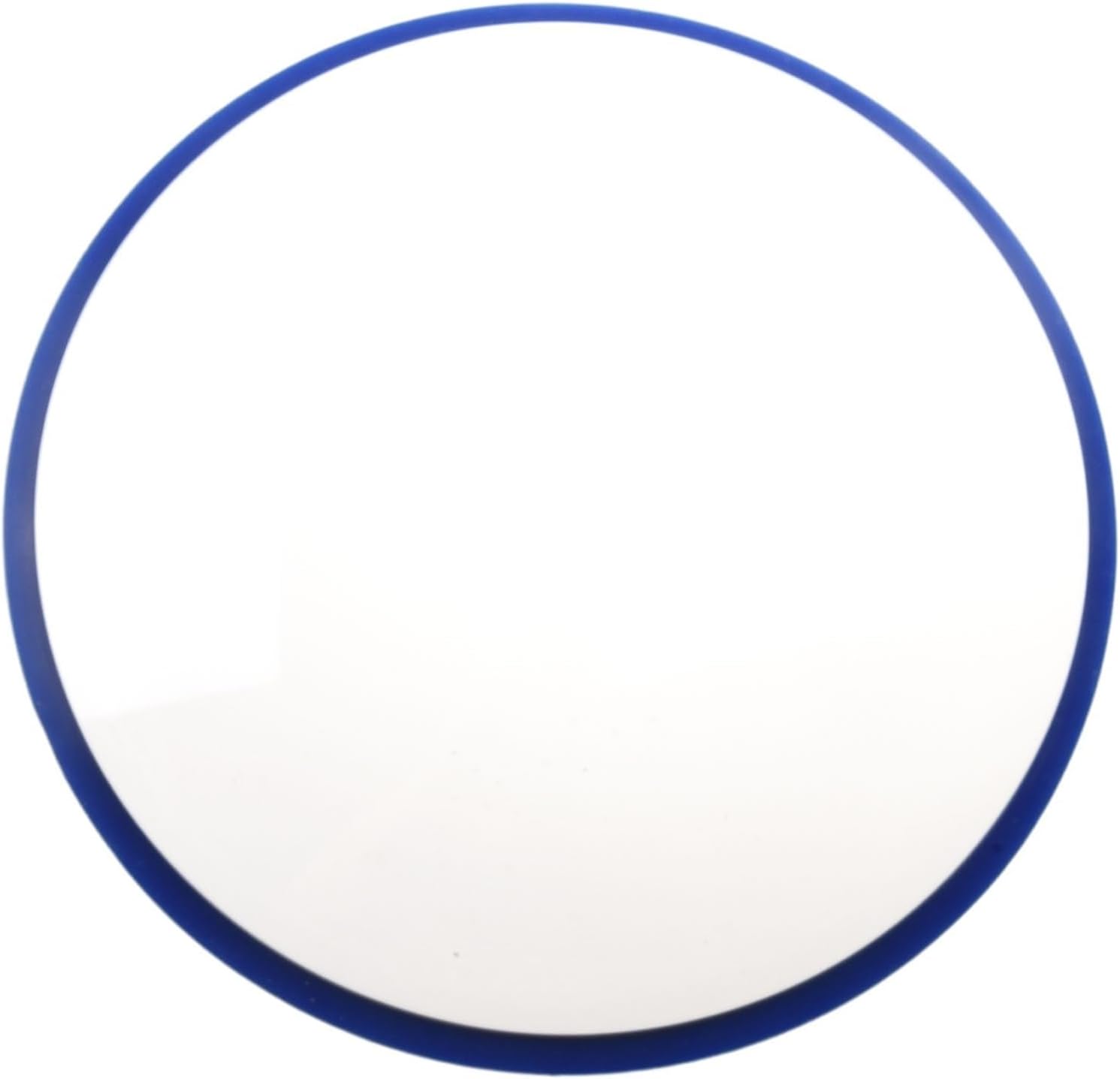

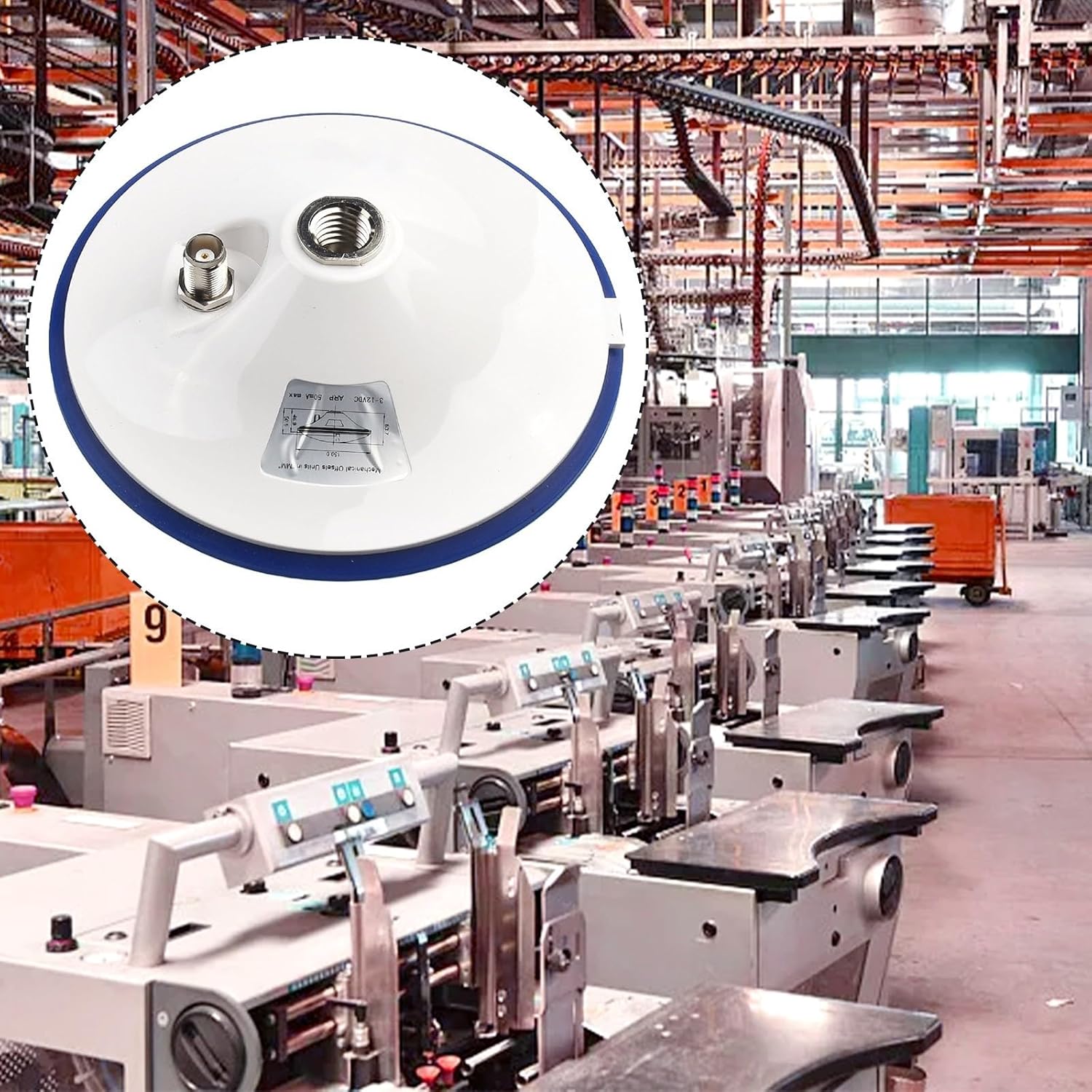

GO100 Multi-Band GNSS GPS Antenna for AG15 AG25 AG35, High Gain Surveying Receiver with TNC Connector

Features:* and * Made of materials, * GO100 is a high- for GNSS antenna that supports the four major global navigation of GPS GLONASS BDS and for Galileo, and supports GPSL1 L2 GLONASS G1G2 Beidou B1B2B3 and for Galileo E1 E5b. The antenna has the characteristics of high gain, good gain at low angles, large circular polarization angle, and stable phase center. It is suitable for high- for surveying and mapping, and is widely used in automated agriculture, geodetic surveying, road construction, survey, terminal container operations and other occasions. The new GO100 uses a high-strength ABS shell and a design that can greatly extend the service life of the antenna.* The antenna part adopts a multi-feed point design to for ensure that the phase center and the geometric center coincide, minimizing the of the antenna on measurement errors;* The antenna unit has high gain and wide beam pattern, the reception of signals at low angles, and can still search for stars normally in some situations with severe obstruction;* High and low temperature resistance, , and anti- cover provide for protection for the antenna when working in the field for a long time.Specification:Antenna specifications:Working frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 GalileoE1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage angle: 360°Output standing wave ratio: ≤1.5Antenna AR: ≤3dBPhase center error: ≤2mmLow Noise Amp lifier Specificationsfor LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Working voltage: +3V~+15VWorking current: ≤45mAConnector: TNC-KAntenna size (mm): Ф150mm×63.7mmWeight (g): 380gworking environment:Working temperature (℃)-40℃: ~+70℃Storage temperature (℃)-55℃: ~+85℃grade: IPX67Package Included:1 * QT150 GNSS Antenna

• 【High-Precision Multi-Band GNSS GPS Antenna】- The GO100 antenna supports GPS, GLONASS, BDS, and Galileo-navigation systems, providing accurate positioning and data acquisition for various applications such as surveying and mapping, agriculture, and construction.
• 【Reliable and Waterproof Design】- Made of high-strength ABS material, the GO100 antenna is built to withstand harsh field conditions. Its waterproof design ensures reliable performance even in challenging environments.
• 【Multi-Feed Point Design】- The antenna unit features a multi-feed point design, minimizing the impacts of measurement errors and ensuring precise positioning.
• 【Wide Beam Pattern and High Gain】- With a wide beam pattern and high gain, the antenna receives signals at low elevations angles and can function effectively in obstructed scenarios, delivering reliable and consistent performance.

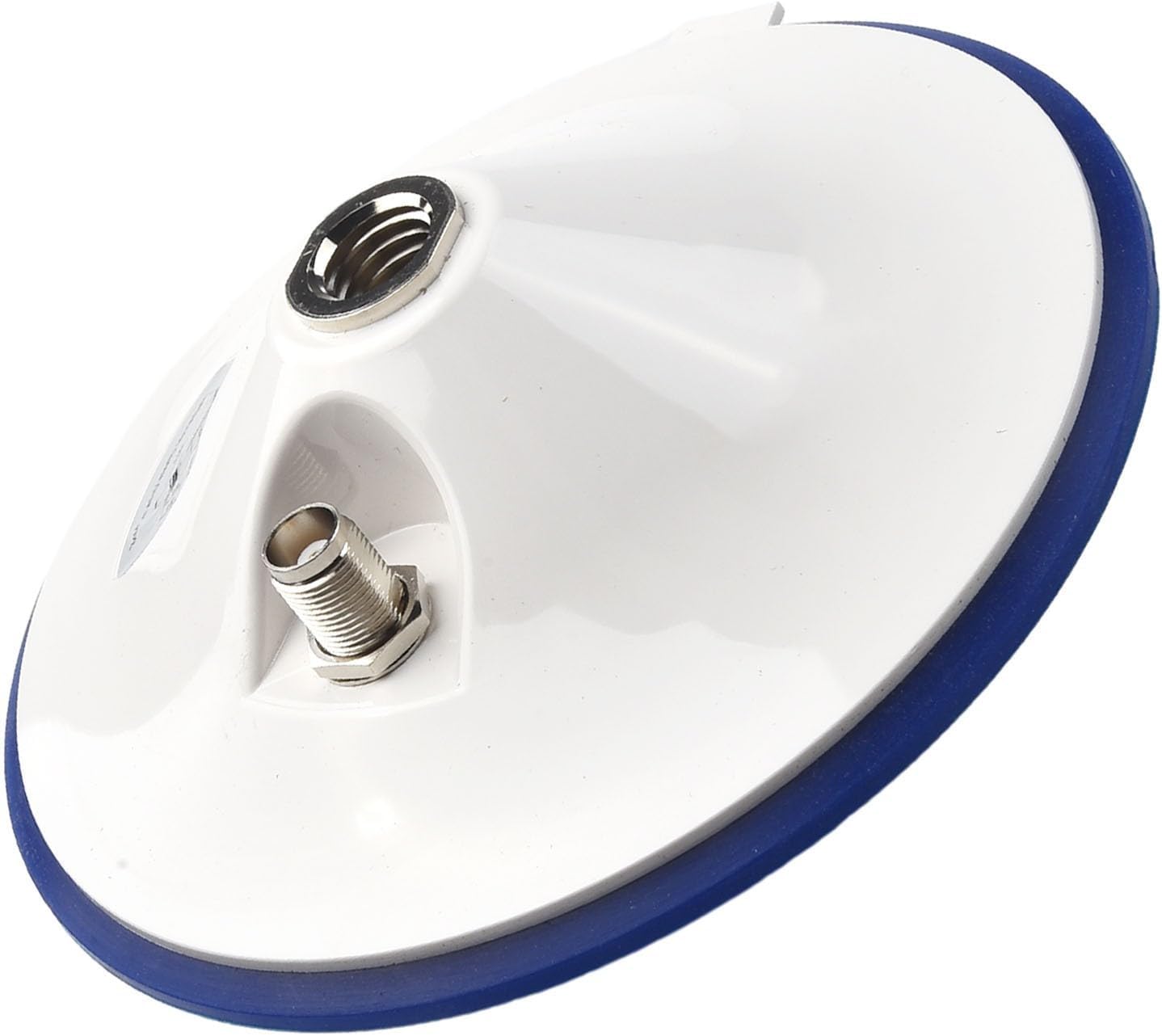

• 【Wide Compatibility and Easy Installation】- The GO100 antenna is compatible with multiple frequency bands and supports various positioning systems. It comes with a TNC-K connector for easy installation.
